911BD050115788 / 911BE050115788
From $1,051.00 ex. Tax / VAT
For bulk orders please contact us.

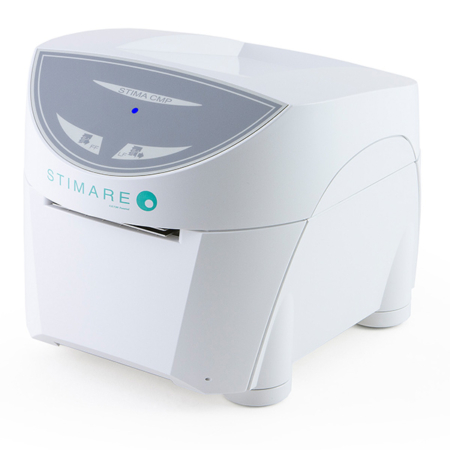

STIMA CMP 20mm – 82.5mm (0.78in – 3.25in) Desktop/Event Thermal Ticket Printer with Tear-off.
The Stima CMP is one of the most advanced and durable desktop thermal ticket printers on the market, designed for the most demanding applications, such as high-volume batch printing of online sales or all-day printing at tourist attractions and transport hubs.
It is designed for perforated ticket stock and features a ticket locking mechanism and user configurable tear-off distance for reliable ticket presentation. The STIMA CMP features the same fast speed of the Stima CLS, up to 200mm/sec. It can handle paper thickness from 70 to 255 g/m² and paper width from 20 to 82.5mm including wristbands. It has adjustable sensors for black mark detection on either the thermal or non-thermal side of the ticket and will handle all types of notched ticket stock.
USB, Serial and Ethernet interfaces are supported as standard. When networked, the printer’s web embedded server allows remote maintenance and performance analysis and automatic maintenance notifications. The printer can also be used to print smart tickets with the optional RFID modules, supporting all common HF and UHF protocols.
STIMA CMP is a desktop thermal ticket printer recommended for heavy-duty applications such as:
| Printing Method | Thermal with fixed head |
| Number of dots | 8 dots/mm to 203 dpi 12 dot/mm to 304 dpi |
| Resolution | 200 dpi or 300 dpi |
| Printing (mm/sec) | 200mm/s maximum |
| Ticket Separation | Tear-off |
| Display | LED indicator |
| Sensors | Fully adjustable top and bottom black mark / gap / notch detectors, paper presence sensors, head temperature sensor, cover open sensors |
| Media Type | Fanfold, thermal rolls, wristbands |
| Paper width | from 20mm to 82.5mm |
| Paper weight | from 70 to 255g/m² |
| Paper thickness | Max 270μm |
| Printing width | 80 mm |
| Interface | Standard: USB, Serial (RS232) and Ethernet
Optional: Wifi dongle, Bluetooth dongle |
| Emulations | ESC/POS, SVELTA, FGL |
| Graphics | JPEG, PNG, BMP, PCX, FGL |
| Software | Self-installing Windows driver, Mac OS X driver (C.U.P.S.), Linux driver (C.U.P.S.)32/64 bit compatible
Android / iOS SDK available Status Monitor Font Editor, Logo Editor Virtual COM/USB SW emulator EasyMyfare SW to read/write MIFARE tags |
| Web Interface | Web Embedded Server allows users to perform remote setup, maintenance and performance analysis
Remote logo and font uploading Real-time status monitor Email notifications |
| Fonts | True Type / Windows / Soft font support for any language |
| Character set | PC437, PC850, PC860, PC863, PC865, PC858 |
| Barcodes | 1D symbologies: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32
2D symbologies: PDF417, DATAMATRIX, AZTEC, QR CODE |
| RAM | Up to 32MB |
| Flash | 16MB |
| Expansion Slot | SD/MMC, max. 2GB |
| Graphic | Dynamic logo management (max
2MB graphic memory) |
| Data Buffer | 64KB |
| Power Supply | 24 Vdc ±10% |
| Power | 100W |
| MTBF | Printer: 550,000 hours
Print Head: 100 Km / 100 million pulses |
| Options | RFID: UF RFID and standard UHF supported:
UltraLight RFID, Mifare and optional I-code, RFID ISO 14443 A/B/B’, ISO 14444, Felica, ISO18092 (NFC), optional Mifare, RFID UHF Multi-Protocol Ticket Safe: Ticket Safe with lock and key and 4x foot extenders Catchment Tray: Front ticket catchment tray |
| Warranty | Printer: 2 years, parts and labor
Print head: 2 years* *Free lifetime print head replacement when using Stimare paper |
| Size (cm) | 19.3 H x 21.6 W x 25.2 L |
| Weight | 4kg |
Brochure & Specs
Manual for use with Stima CMP 200 or 300 dpi variants.
Quick installation guide for the CMP on Windows (All versions)
