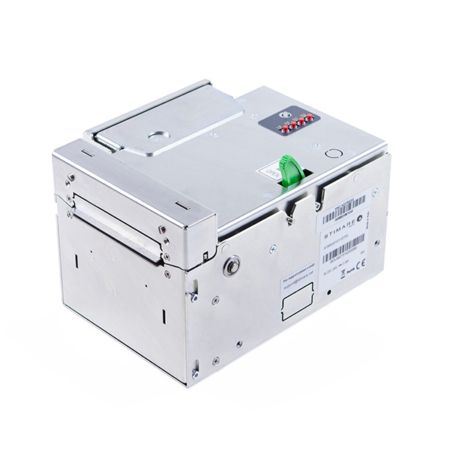

STIMA OEM Self-Service Kiosk Thermal Ticket Printer with Cutter
915AV210115700 / 915AW210115700 / 915AV010115700 / 915AW010115700
For bulk orders please contact us.
STIMA OEM 20mm – 82.5mm (0.78in – 3.25in) Self-Service Kiosk Thermal Ticket Printer with Cutter.
Stima OEM is the latest iteration of a class leader in performance, reliability and flexibility in the most heavy-duty thermal printing applications. It prints 20mm wide waterproof wristbands, 50mm wide adhesive baggage tags for airlines, 82.5mm wide event tickets in the hundreds of thousands, and a myriad other interesting and challenging applications, fan-fold or paper roll.
Performance is remarkable, printing up to 200mm/sec on paper weights from 80 g/m² to 350 g/m² with an industry leading 2,000,000+ ticket cuts. It is a uniquely adaptable ticket printer having movable alignment sensors above and below the paper path to accommodate all types and sizes of graphic media and pre-printed artwork with various alignment marks.
Ethernet USB and RS232 are standard with optional Wi-Fi adapters for cable free interfacing. A very popular feature is the onboard web server with secure access, providing a user friendly but comprehensive graphical real time status display and also an extensive remote management utility where settings and configurations can be changed, logos and fonts can be stored locally on the printer and ticket layout and alignment can be defined, either on the go printer by printer or by quickly and easily distributing a preconfigured setup file to the flash drive of every printer on your global network.
The optional RFID kit is becoming widely adopted for automated access control, tracking of tickets throughout and around venues and parcel and product tracking. The ability to read from RFID chips as they are being printed provides a level of ticket fraud security previously unavailable and the function of writing to RFID as the ticket or label is printed is constantly finding new applications. There is also a model with an inline barcode scanner, built in to the print engine to provide secure and seamless ticket stock verification and management.
The Stima OEM is widely used in airports, either the model with native AEA firmware onboard that integrates effortlessly with CUSS platforms, or the standard Stima OEM with Windows drivers. A real benefit here is the triple feeder option (factory fitted). This enables printing of bag tags and two different types of boarding pass tickets from the same printer. Alternatively, two or three stacks of the same boarding pass stock can be loaded into the same printer for higher autonomy. Not only does this save on capital outlay with fewer printers required, but also uses less of the vital space inside self-check in stations than the traditional multiple printers
Of course, the autonomy, cost saving, space saving, and flexibility facilitated by the triple feeder applies equally well to non-airline applications.
P/N: 915AV210115700 / 915AW210115700 / 915AV010115700 / 915AW010115700
|Printing Method||Thermal with fixed head|
|Number of dots||8 dots/mm to 203 dpi
12 dot/mm to 304 dpi
|Resolution||200 dpi or 300 dpi|
|Printing (mm/sec)||200mm/s maximum|
|Sensors||Fully adjustable top and bottom black mark / gap / notch detectors, paper presence sensors, head temperature sensor, cover open sensors|
|Media Type||Fanfold, thermal rolls, wristbands|
|Paper width||from 20mm to 82.5mm|
|Paper weight||from 70 to 255g/m²|
|Paper thickness||Max 270μm|
|Printing width||80 mm|

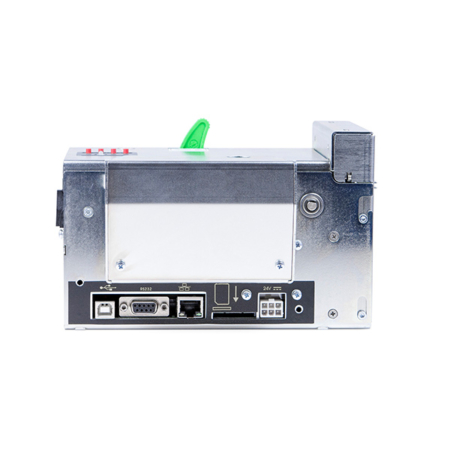

|Interface||Standard: USB, Serial (RS232) and Ethernet
Optional: Wifi dongle, Bluetooth dongle
|Emulations||ESC/POS, SVELTA, FGL|
|Graphics||JPEG, PNG, BMP, PCX, FGL|
|Software||Self-installing Windows driver, Mac OS X driver (C.U.P.S.), Linux driver (C.U.P.S.)32/64 bit compatible
Android / iOS SDK available
Font Editor, Logo Editor
Virtual COM/USB SW emulator
EasyMyfare SW to read/write MIFARE tags
|Web Interface||Web Embedded Server allows users to perform remote setup, maintenance and performance analysis
Remote logo and font uploading
Real-time status monitor
|Fonts||True Type / Windows / So� font support for any language|
|Character set||PC437, PC850, PC860, PC863, PC865, PC858|
|Barcodes||1D symbologies: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32
2D symbologies: PDF417, DATAMATRIX, AZTEC, QR CODE
|RAM||Up to 32MB|
|Expansion Slot||SD/MMC, max. 2GB|
|Graphic||Dynamic logo management (max
2MB graphic memory)
|Power Supply||24 Vdc ±10%|
|MTBF||Printer: 550,000 hours
Print Head: 100 Km / 100 million pulses
Cutter: 2 million cuts
|Options||RFID: UF RFID and standard UHF supported:
UltraLight RFID, Mifare and optional I-code, RFID ISO 14443 A/B/B’, ISO 14444, Felica, ISO18092 (NFC), optional Mifare, RFID UHF Multi-Protocol
Ticket Safe: Ticket Safe with lock and key and 4x foot extenders
Catchment Tray: Front ticket catchment tray
|Warranty||Printer: 2 years, parts and labor
Print head: 2 years*
*Free lifetime print head replacement when using Stimare paper
|Size (cm)||19.3 H x 21.6 W x 25.2 L|
