911HL010215788 / 911HL010115788
From $824.00 ex. Tax / VAT
For bulk orders please contact us.

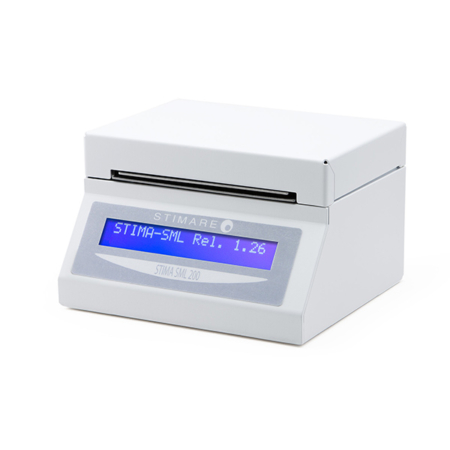

STIMA SML 20mm – 82.5mm (0.78in – 3.25in) Desktop/Event Thermal Ticket Printer with Tear-off.

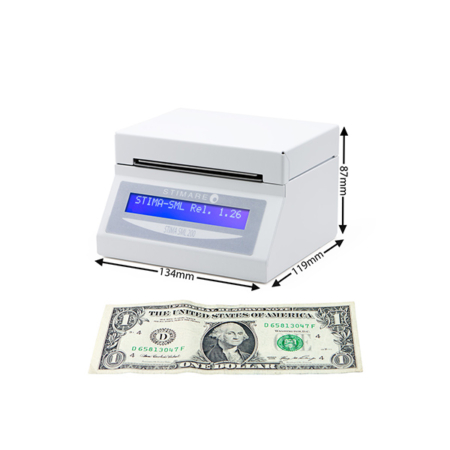

The Stima SML is one of the smallest desktop thermal ticket printers in its class. With a footprint of just 5.7 inches wide and 4.8 inches deep, the Stima SML is especially well suited to small check-in desks or any other applications where space is a major issue.
It is designed for perforated ticket stock and features a ticket locking mechanism and user configurable tear-off distance for reliable ticket presentation. It has an LCD display which allows the user easy access to the setup menu as well as displaying printer status and error messages.
The STIMA SML ticket printer is fast, up to 200mm/sec. It can handle paper thickness from 70 to 255 g/m² and paper width from 20 to 82.5mm including wristbands. It has adjustable sensors for black mark detection on either the thermal or non-thermal side of the ticket and will handle all types of notched ticket stock. USB, Serial and Ethernet interfaces are supported as standard with integrated Wi-Fi or Bluetooth available as an optional extra.
STIMA SML is one of the smallest desktop thermal ticket printer of its class in existence.
Specially designed for small check-in desks where space is a major issue.
| Printing Method | Thermal with fixed head |
| Number of dots | 8 dots/mm to 203 dpi 12 dot/mm to 304 dpi |
| Resolution | 200 dpi or 300 dpi |
| Printing (mm/sec) | 200mm/s maximum |
| Ticket Separation | Tear-off |
| Display | 2 line integrated LCD display |
| Sensors | Fully adjustable top and bottom black mark / gap / notch detectors, paper presence sensors, head temperature sensor, cover open sensors |
| Media Type | Fanfold, thermal rolls, wristbands |
| Paper width | from 20mm to 82.5mm |
| Paper weight | from 70 to 255g/m² |
| Paper thickness | Max 270μm |
| Printing width | 80 mm |

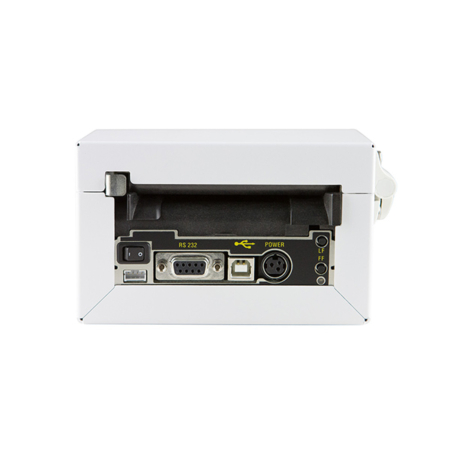

| Interface | Standard: USB, Serial (RS232) and Ethernet
Optional: Wifi dongle, Bluetooth dongle |
| Emulations | ESC/POS, SVELTA, FGL |
| Graphics | JPEG, PNG, BMP, PCX, FGL |
| Software | Self-installing Windows driver, Mac OS X driver (C.U.P.S.), Linux driver (C.U.P.S.)32/64 bit compatible
Android / iOS SDK available Status Monitor Font Editor, Logo Editor Virtual COM/USB SW emulator EasyMyfare SW to read/write MIFARE tags |
| Web Interface | Web Embedded Server allows users to perform remote setup, maintenance and performance analysis
Remote logo and font uploading Real-time status monitor Email notifications |
| Fonts | True Type / Windows / Soft font support for any language |
| Character set | PC437, PC850, PC860, PC863, PC865, PC858 |
| Barcodes | 1D symbologies: UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128, CODE32
2D symbologies: PDF417, DATAMATRIX, AZTEC, QR CODE |
| RAM | 128Kbytes internal + 8Mbytes external |
| Flash | 1Mbyte internal + 8Mbytes external |
| Expansion Slot | SD/MMC, max. 2GB |
| Graphic | “Drag&Drop” graphics and logo |
| Data Buffer | 16KB text / 1MB graphics |
| Power Supply | 24 Vdc ±10% |
| Power | 60W |
| MTBF | Printer: 113,000 hours
Print Head: 100 Km / 100 million pulses |
| Options | In Desk Mount: Allows the printer to be integrating into desktop design. RFID: UF RFID and standard UHF supported: UltraLight RFID, Mifare and optional I-code, RFID ISO 14443 A/B/B’, ISO 14444, Felica, ISO18092 (NFC), optional Mifare, RFID UHF Multi Protocol |
| Warranty | Printer: 2 years, parts and labor
Print head: 2 years* *Free lifetime print head replacement when using Stimare paper |
| Size (cm) | 19.3 H x 21.6 W x 25.2 L |
| Weight | 4kg |
Brochure & Specs
Manual for use with Stima SML 200 or 300 dpi variants.
Quick installation guide for the SML on Windows (All versions)
