- IP67 Rated Rugged Waterproof Design
- Universal quick-release device mount system
- High performance OEM 2D scan engine
- Supports Android®, iOS®, and Windows® devices.
- Docking station for dual fast charge (included)
- Invisible to-device cable system (included)
- USB HID, USB COM, Bluetooth® HID and SPP connectivity
- LED status indicator, audible beeper
- Over 30,000 scans on a single charge

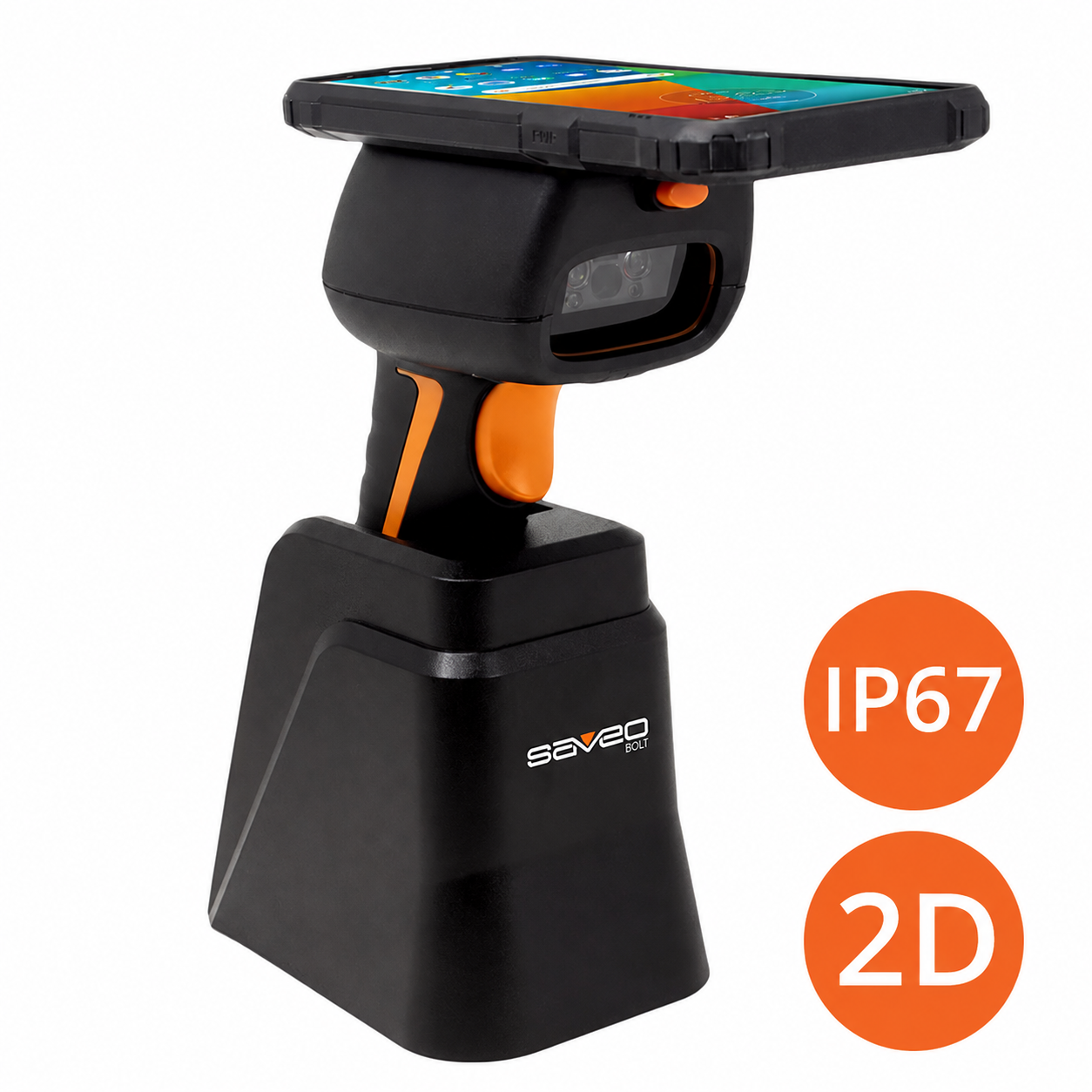

Saveo BOLT 2D (S12D)
SAVEO-BLT-S12D
$698.00 ex. Tax / VAT
For bulk orders please contact us.
Saveo BOLT™ is a next-generation smart barcode scanner for Android®, iOS®, and Windows® devices. A universal quick-release mounting system allows for any type of smartphone or tablet to be integrated in seconds, whilst providing interoperability with a growing range of Saveo Scan devices. Flex-Protect ‘invisible’ device cables allow for your device to fast charge and data to be securely transferred whilst in use, whilst protecting your device’s charging port. Use completely wirelessly with a Bluetooth Low Energy connection with instant auto-switching feature. SAVEO-BLT-S12D features a high-performance OEM 2D imager that has been selected to give you an edge whether scanning from paper media or digital screens. Its suited uses include inventory control, ticketing, logistics, retail, manufacturing, field services, warehousing, food, medical and pharmaceutical industries. Saveo BOLT features a rugged industrial build quality and is certified IP67, Ex (Atex), Anti-Microbial and for repeated drops of up to 2 meters.
Please note: Smartphone/Tablet not included.
In Stock - Available for shipping next day
| Performance characteristics | |
| Scan Engine | SAVEO S12D (2D CMOS Scan Engine) |
| Sensor | CMOS 1280pixel(H)*800pixel(V) |
| Illumination Element | 5600K White LED |
| Depth of field | 30mm~300mm, Data Matrix (10mil) |
| Scan Speed | 30 full frames per second (FPS) |
| Aim Assist | Red LED Aim Bar |
| Reading angle | Tilt: 360°, pitch: ±60°, skew: ±60° |
| Print contrast | ≥ 15-30° |
| Indicators | LED status Indictor & Audible Beeper |
| Interface | USB HID, USB COM, Bluetooth HID, SPP (BLE) |
| Triggering | Manual Scan Trigger + Auto-sense mode |
| Electrical characteristics | |
| Input voltage | 5 VDC ± 1.0 V |
| Current – operating | Operating 430mA, Idle 300mA |
| Battery | Li-ion 3200mah (30,000+ scans on a single charge) |
| Charge Time | 1.5hrs (approx.):,from Low to Max |
| To-Device Cables (included) | Saveo FlexProtect™ USB Type-C, Micro and Lightning® |
| Charging Cradle (included) | USB Type-C + USB Micro cable input ports |
| Physical characteristics | |
| Dimensions | 145 X 85 X 105 mm (L x W x H) |
| Weight | 465 g +/- 5 g (Without cradle) |
| User Environment | |
| Operating temperature | -30°C to 60°C |
| Storage temperature | -40° ~ + 70° |
| Humidity | 5% to 85% relative humidity, non-condensing |
| Ambient Light | Maximum 96,900Lux. (direct sunlight) |
| Drop Rating | Can withstand multiple drops at a height of 1.8m |
| Symbologies | |
| Supports all major 1D or 2D barcodes, including 2D: PDF417、QR Code (QR1/2, Micro)、Data Matrix 、MaxiCode、Aztec code, Aim Dot Code, Fedora. 1D : Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, JAN-8&JAN-13,ISBN/ISSN, UPC-E, UPC-A, (Expanded stacked)Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Code32,IATA 2 of 5,Pharmacode GS1 databar stacked,Limited,Expanded,Codebar(NW7) | |
| Packing details | |
| Inner Box | 1pc/box; 300mm x 250mm x 170mm
900g |
| Carton | 12sets/ctn;
11.8kg/ctn; 690mm×420mm×255mm |
| Certifications | IP67, FCC, CE, RoHS |
Saveo BOLT 2D (S12D)
Brochure & General Product Specifications
Saveo BOLT 2D (S12D) Quick Guide
Quick Guide
