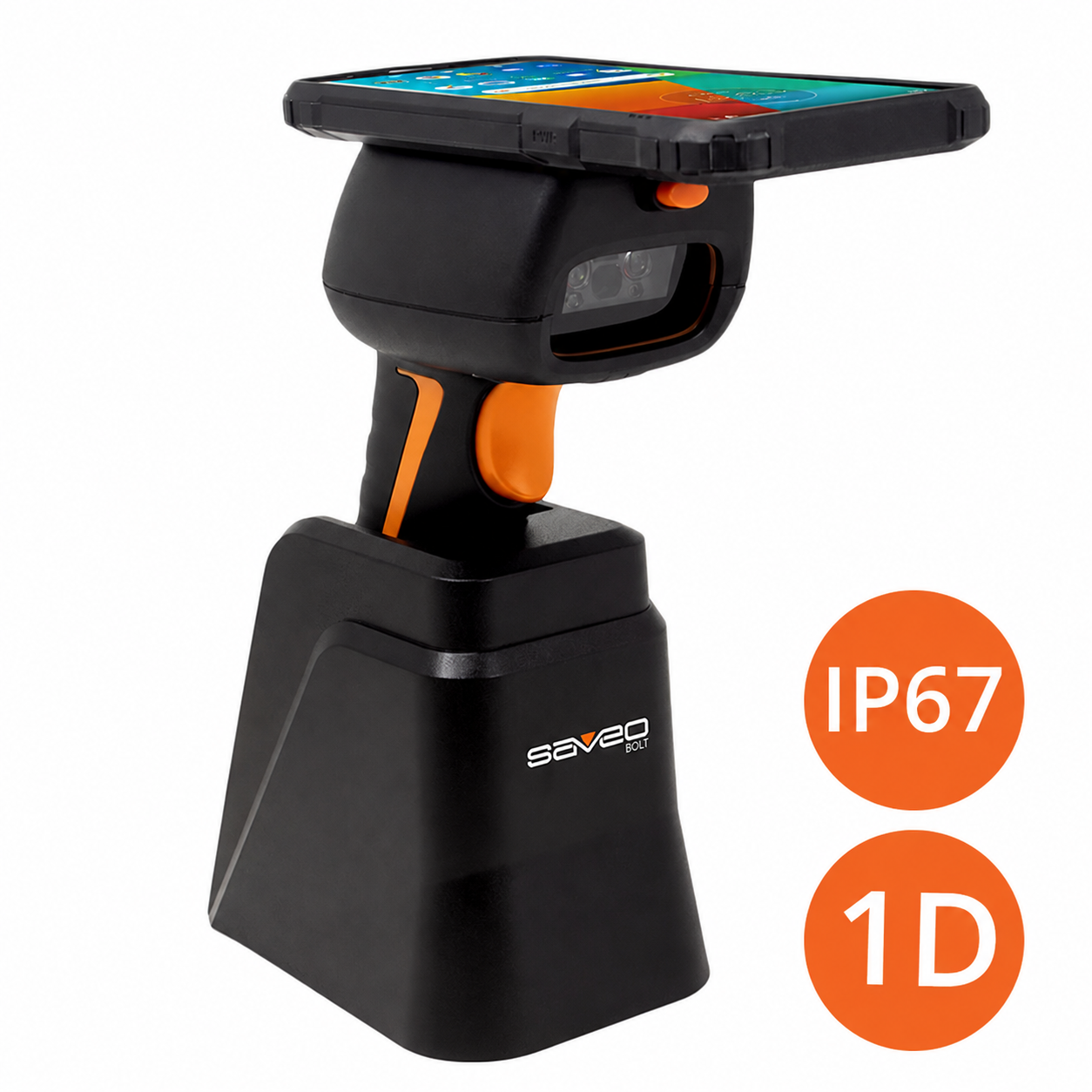

Saveo BOLT CCD

SAVEO-BLT-SCCD

$559.00 ex. Tax / VAT

For bulk orders please contact us.

Saveo BOLT™ is a next-generation smart barcode scanner for Android®, iOS®, and Windows® devices. Auniversal quick-release mounting system allows for any type of smartphone or tablet to be integrated in seconds, whilst providing interoperability with a growing range of Saveo Scan devices. Flex-Protect ‘invisible’ device cables allow for your device to fast charge and data to be securely transferred whilst in use, whilst protecting your device’s charging port. Use completely wirelessly with a Bluetooth Low Energy connection with instant auto-switching feature. SAVEO-BLT-SCCD has been designed to maximize efficiency in scanning operations that require high performance, 1D scanning capabilities from paper media or digital screens. It excels in inventory control, logistics, retail, manufacturing, field services, warehousing, food industries. Saveo BOLT features a rugged industrial build quality and is certified IP67, Ex (Atex), Anti-Microbial and for repeated drops of up to 2 meters.

Please note: Smartphone/Tablet not included.

In Stock - Available for shipping next day

P/N: SAVEO-BLT-SCCD

  • IP67 Rated Rugged Waterproof Design
  • Universal quick-release device mount system
  • High performance 1D RCCD Saveo scan engine
  • Supports Android®, iOS®, and Windows® devices.
  • Docking station for dual fast charge (included)
  • Invisible to-device cable system (included)
  • USB HID, USB COM, Bluetooth® HID and SPP connectivity
  • LED status indicator, audible beeper
  • Over 30,000 scans on a single charge
Performance characteristics
Scan Engine SAVEO SCCD (1D RCCD Scan Engine)
Sensor Linear CCD Sensor (1500px)
Illumination Element 610nm~640nm Red LED
Depth of field 50mm – 480mm
Scan Speed 300times/s
Aim Assist Red LED Aim Bar
Reading angle Tilt: 360°, pitch: ±55°, skew: ±55°
Print contrast ≥ 30°
Indicators LED status Indictor & Audible Beeper
Interface USB HID, USB COM, Bluetooth HID, SPP (BLE)
Triggering Manual Scan Trigger + Auto-sense mode
Electrical characteristics
Input voltage 5 VDC ± 1.0 V
Current – operating Operating 410mA, Idle 260mA
Battery Li-ion 3200mah (80,000+ scans on a single charge)
Charge Time 1.5hrs (approx.):,from Low to Max
To-Device Cables (included) Saveo FlexProtect™ USB Type-C, Micro and Lightning®
Charging Cradle (included) USB Type-C + USB Micro cable input ports
Physical characteristics
Dimensions 145 X 85 X 105 mm (L x W x H)
Weight 460 g +/- 5 g (Without cradle)
User Environment
Operating temperature -20° ~ + 50°
Storage temperature -40° ~ + 70°
Humidity Up to 95% relative humidity, non-condensing
Ambient Light Maximum 100,000Lux. (direct sunlight)
Drop Rating Can withstand multiple drops at a height of 1.8m
Symbologies
EAN-8, EAN-13, Codabar, CODE 11, CODE 39, CODE 93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI Plessey,ITF14
Packing details
Inner Box 1pc/box; 300mm x 250mm x 170mm

900g
Carton 12sets/ctn;

11.8kg/ctn;

690mm×420mm×255mm
Certifications IP67, FCC, CE, RoHS

Saveo BOLT 1D (SCCD)

Brochure & General Product Specifications

Download File

Saveo BOLT 1D (SCCD) Quick Guide

Quick Guide

Download File

Related products

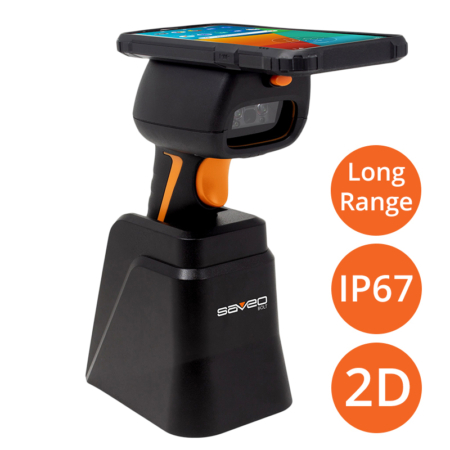

Saveo BOLT 2D (S12D)Saveo BOLT 2D (Z12D)
